Gears for Robotics & Automation

Automation & Indexing Drives

Gears and shafts for indexers, transfer equipment and repetitive automated mechanisms. Send your part drawings, quantity and operating requirements for an OEM manufacturing quotation.

Request a quote System overview ↓

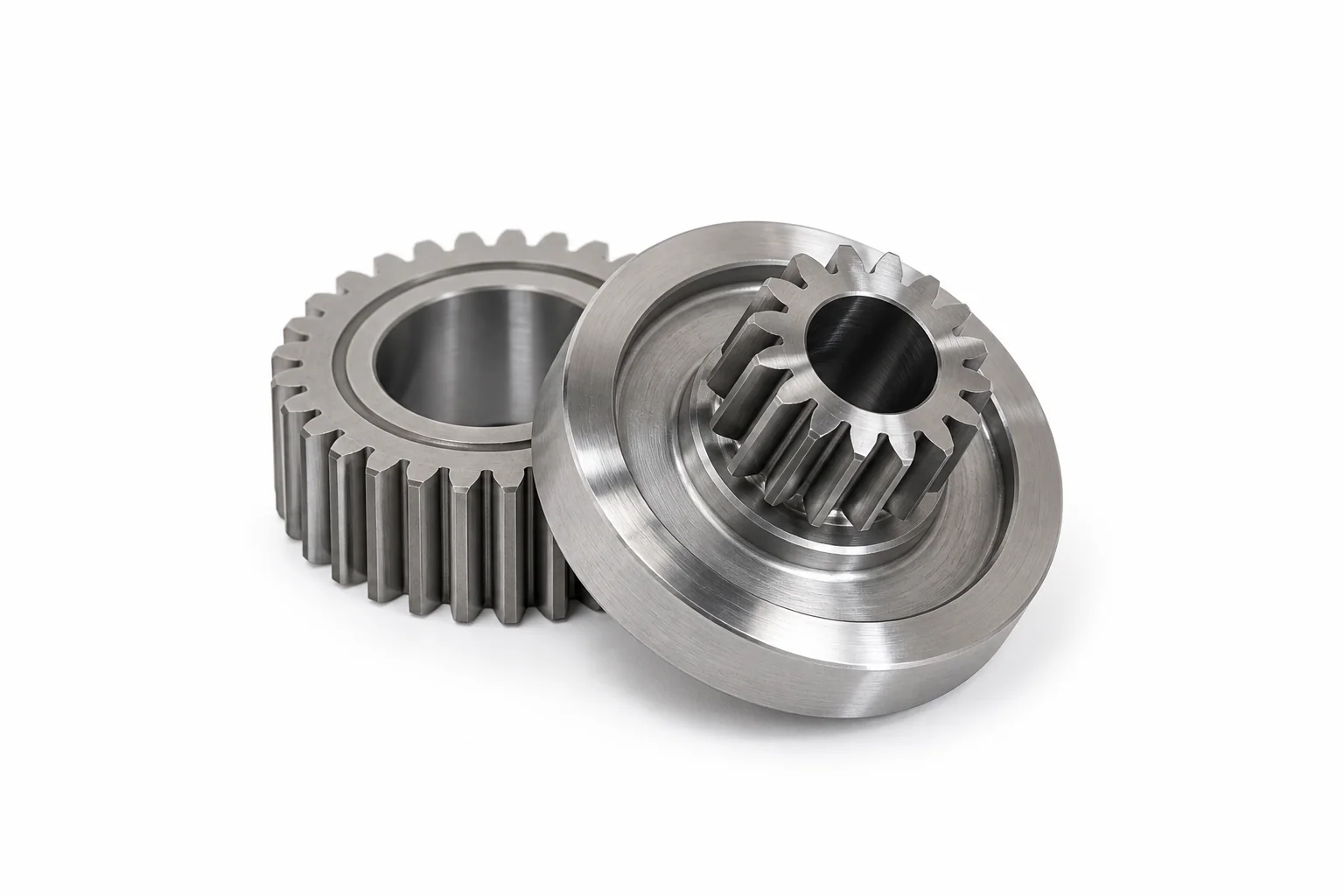

Precision component example for Automation & Indexing DrivesKERVELD / ZHONGBANG

SYSTEM OVERVIEW

Specify the motion between indexing positions.

Indexing and transfer systems combine repetitive starts, stops and precise handoff positions. The RFQ should identify the station function, cycle rate and the relationship between the drive components.

An indexing mechanism can involve acceleration, dwell and repeated reversals. The part drawing should remain connected to the cycle and to the shaft, rack or reducer interface that locates it.

Typical component scope

Spur and helical gears
Gear shafts
Planetary components
Custom drive assemblies

Use the assembly reference and individual drawings to define which components are included.

OPERATING PRIORITIES

What matters in this application

Cycle definition

Describe rotation, dwell, acceleration and direction changes.

Mounting reference

Identify the datums used by the mechanism.

Acceptance conditions

State tooth, dimensional and positioning-related requirements separately.

COMPONENT EXAMPLES

Gear and transmission part examples

APPLICATION RFQ CHECKLIST

What to include in your application inquiry

Automation & Indexing Drives sourcing review
Review item	What to define
Cycle definition	Describe rotation, dwell, acceleration and direction changes.
Mounting reference	Identify the datums used by the mechanism.
Acceptance conditions	State tooth, dimensional and positioning-related requirements separately.
Part definition & production plan	Latest drawing revision, mating-part interfaces, material and treatment, required reports, first-order quantity and annual demand.
