CUSTOM OEM GEAR COMPONENT
Custom Gears & Transmission Assemblies
Non-standard gears, combined gear-and-shaft parts and related transmission assemblies. Start with a drawing, 3D model or sample details to discuss your custom manufacturing requirements.
PRODUCT OVERVIEW
Custom Gears & Assemblies for your transmission layout
Some parts combine features that do not fit a single gear category: two tooth forms, an integrated shaft, a locating flange, a spline sleeve or several connected components. A custom inquiry should explain both the part geometry and the role it performs in the machine.
Zhongbang Gear specializes in custom OEM/ODM gears, gear shafts and ring gears. KERVELD connects that manufacturing base to industrial, agricultural, electric-vehicle and automation sourcing projects. Prototype quantities and repeat production are considered as distinct project stages.
Part types and features
- Non-standard gears
Geometry or mounting features outside a standard catalog form. - Combined components

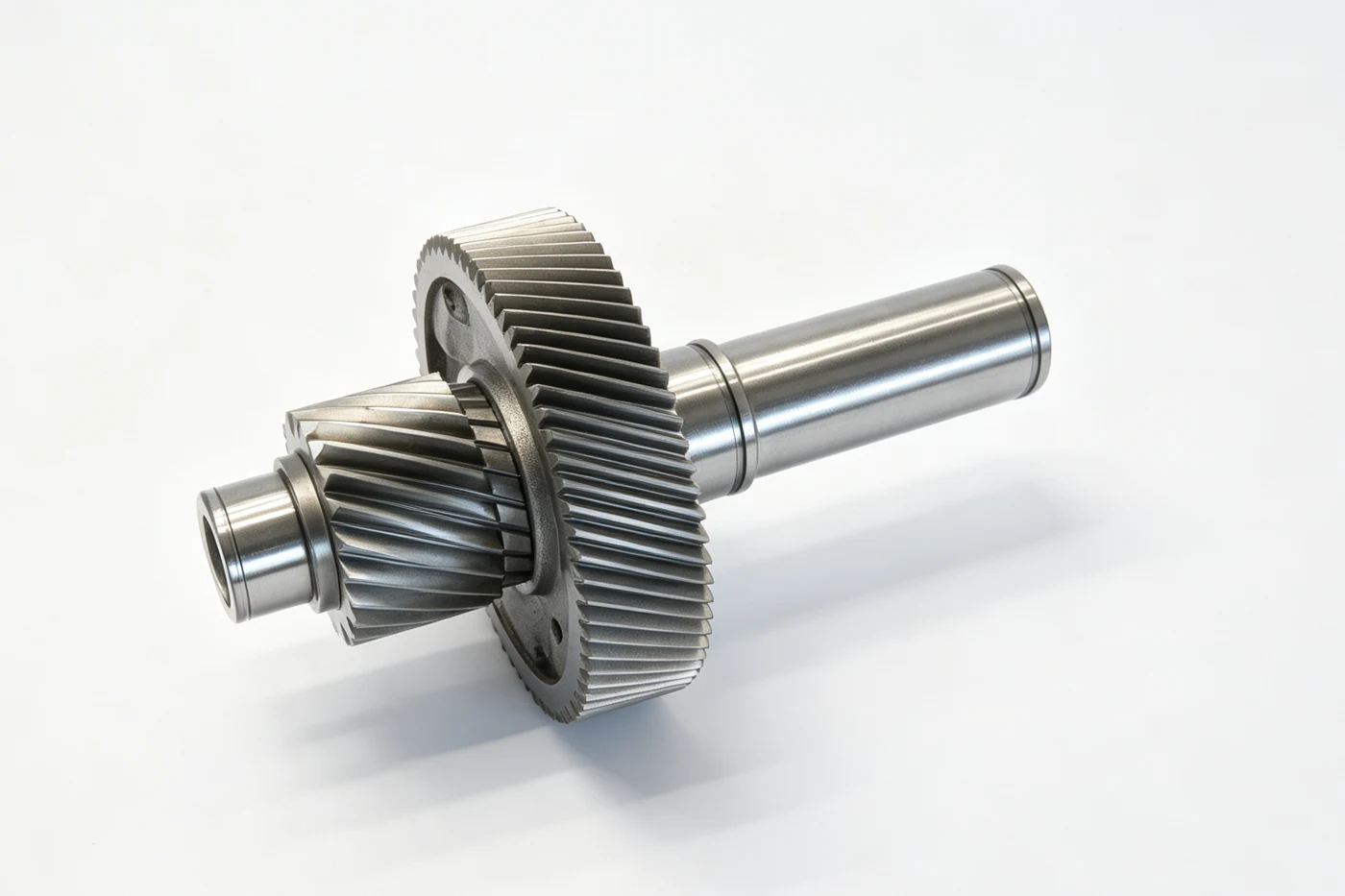

Gear, spline, shaft and locating features on one controlled part. - Drawing-based assemblies
Several components with a defined bill of materials and interface plan.
TECHNICAL DEFINITION
Specifications to include in your drawing
Include these details with your drawing so we can assess manufacturing, inspection and quotation requirements.
| Review item | What to define |
|---|---|
| Technical starting point | Drawing package, 3D model or a sample with available dimensional information. |
| Function and interfaces | Machine position, mating parts, mounting datums and intended duty. |
| Material definition | Grade, treatment, hardness and any restricted substitutions. |
| Supply responsibility | Manufactured parts, buyer-supplied items and required assembly operations. |
| Acceptance and stage | Prototype objective, production quantity and agreed inspection criteria. |
Share your dimensions, material, accuracy requirements and order quantity. We confirm the manufacturing options and delivery requirements for your specific part.
MANUFACTURING & INSPECTION
Manufacturing and inspection for this part
We review tooth access, workholding, machining order, heat-treatment effects and inspection before planning a custom part. The drawing revision is agreed before production. If you have only a sample, include photographs and available dimensions so we can clarify the drawing information needed.
View inspection and quality documentationGear Inspection & Precision Metrology
Profile, lead, pitch or other characteristics specified for the part.
Prototype to Production Gear Manufacturing
Prototype quantities with a clear validation objective.
Critical features
The dimensions and tooth characteristics that determine assembly function.
Revision control
An agreed technical definition for the manufactured part or set.
Acceptance package
The measurement records and approval steps needed for the project stage.
APPLICATIONS
Where these components work
APPLICATION CONTEXT
Machine-building projects
Transmission parts with special mounting or movement requirements.
View application requirementsAPPLICATION CONTEXT
Driveline components
Custom connected gear and shaft features.
View application requirementsAPPLICATION CONTEXT
Robot joint projects
Defined components for compact motion systems.
View application requirementsPRODUCT QUESTIONS
Before you send the drawing
Can I start with a sample?
Yes. Include photographs, available dimensions and the intended application. The drawing and acceptance basis need to be agreed before manufacture.
Are prototype and production inquiries handled differently?
They need different information: a prototype has a validation objective; repeat production also needs forecasts, packaging and agreed release requirements.
Does ODM mean product design is in the IATF scope?
No. Our IATF 16949:2016 certificate covers production of transmission gears, engine gears and shafts; product design is excluded. Any requested engineering work is reviewed separately.
CONNECTED COMPONENTS
Related gear products
CUSTOM OEM COMPONENT
Gearbox & Reducer Components
Gears, shafts, carriers and sleeves made to your gearbox or reducer drawings.
View product
CUSTOM OEM COMPONENT
Gear Shafts & Spline Shafts
Combined shaft and spline features for power transmission assemblies.
View product
CUSTOM OEM COMPONENT
Planetary Gear Components
Sun gears, planet gears, ring gears and related planetary components.
View productRequest a quotation for custom gears & assemblies
Share your drawing, quantity and application. We will review the manufacturing and inspection requirements, then contact you to clarify any details needed for a quotation.
