CUSTOM OEM GEAR COMPONENT
Custom Gear Shafts & Spline Shafts
Custom gear shafts and spline shafts for agricultural, electric-vehicle and industrial transmissions. Gear teeth, bearing journals and mounting features are manufactured to your complete shaft drawing.
PRODUCT OVERVIEW
Gear Shafts & Spline Shafts for your transmission layout
Gear shafts integrate a toothed feature with the shaft that carries it. Spline shafts transmit torque through multiple mating teeth while allowing the fit and axial movement specified by the designer. A component may combine both features with journals, shoulders, threads and locating faces.

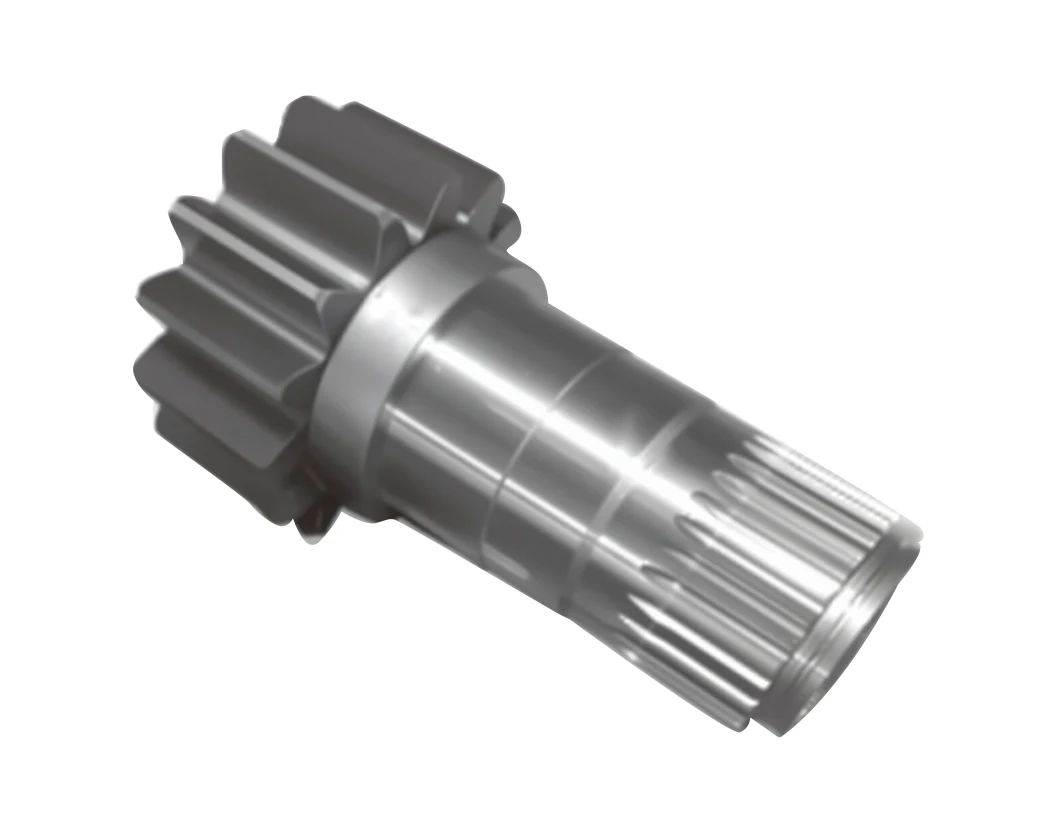

Our range includes agricultural gearbox shafts, reducer gear shafts and electric-drive transmission shafts. We review the complete shaft, including tooth-to-journal alignment and each mating interface.
Part types and features
- Integrated gear shafts
A gear tooth feature combined with shaft journals. - External spline shafts
Torque-transfer interfaces with the specified fit and spline standard. - Multi-feature transmission shafts
Combined gears, splines, shoulders and bearing locations.
TECHNICAL DEFINITION
Specifications to include in your drawing
Include these details with your drawing so we can assess manufacturing, inspection and quotation requirements.
| Review item | What to define |
|---|---|
| Shaft geometry | Overall length, stepped diameters, journal fits and shoulder locations. |
| Gear features | Tooth count, module, pressure angle and helix data where applicable. |
| Spline definition | Standard, tooth data, fit class and any timing relationship. |
| Datum relationships | Tooth-to-journal runout, coaxiality and mounting-face requirements. |
| Treatment and reports | Hardness zones, case depth, distortion limits and inspection records. |
Share your dimensions, material, accuracy requirements and order quantity. We confirm the manufacturing options and delivery requirements for your specific part.
MANUFACTURING & INSPECTION
Manufacturing and inspection for this part
CNC turning and machining create the shaft and interface geometry. Gear cutting and specified finishing must then preserve the defined relationship to the journals and shoulders. Long or stepped shafts also need a support and workholding plan that suits the part rather than the tooth feature alone.
View inspection and quality documentationPrecision Gear Grinding
Specified finished tooth geometry in industrial and vehicle drives.
Gear Inspection & Precision Metrology
Profile, lead, pitch or other characteristics specified for the part.
Journal geometry
Specified bearing fits and roundness requirements.
Feature alignment
Gear, spline and bearing datum relationships.
Axial position
Shoulder, groove and mounting-face locations along the shaft.
APPLICATIONS
Where these components work
APPLICATION CONTEXT
Electric drivetrain shafts
Motor-side and reducer-side transmission interfaces.
View application requirementsAPPLICATION CONTEXT
Tractor & PTO shafts
Spline engagement and gearbox power transfer.
View application requirementsAPPLICATION CONTEXT
Industrial reducer shafts
Input, intermediate and output shaft functions.
View application requirementsPRODUCT QUESTIONS
Before you send the drawing
Should the shaft and gear be quoted separately?
Not when they form a single part. Supply the complete component drawing so the datum and treatment requirements stay connected.
What should a spline specification include?
Identify the standard and edition where relevant, tooth data, fit, inspection method and mating-part relationship.
Can different shaft zones have different treatment requirements?
State the required zones and hardness limits explicitly. The manufacturing review will consider the treatment sequence and resulting distortion.
