CUSTOM OEM GEAR COMPONENT
Internal Gear & Ring Gear Manufacturing
Custom internal ring gears for planetary reducers, wheel-end drives and compact transmissions. Send your tooth data, mounting dimensions and mating-part drawings for review.
PRODUCT OVERVIEW
Internal Gears & Ring Gears for your transmission layout

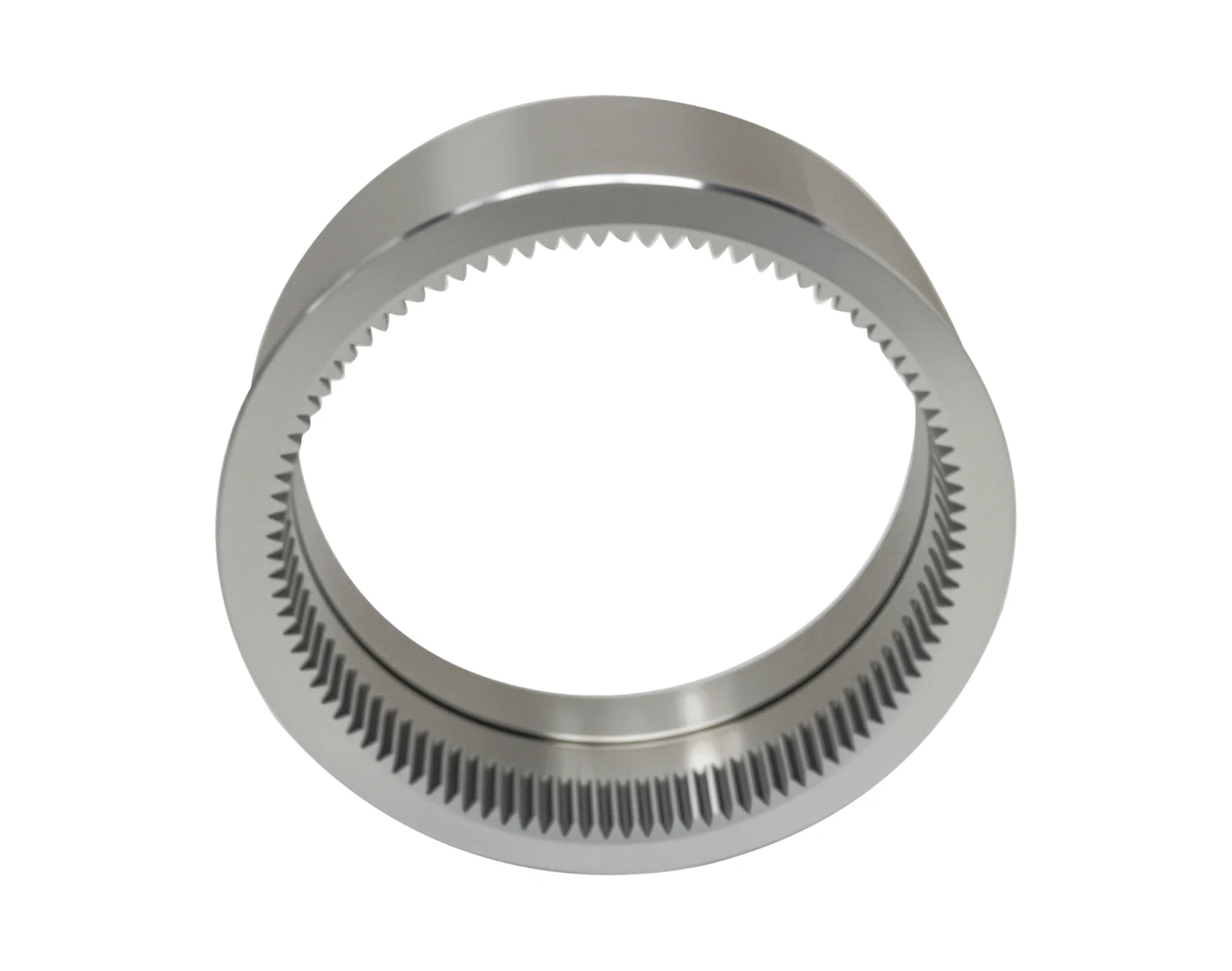

An internal gear has teeth on the inside of a ring. In a planetary arrangement, it meshes with external planet gears and helps create a compact reduction stage. A ring may also carry a mounting flange, bolt circle, outside locating surface or other housing interface.
Our range includes agricultural wheel-end rings, planetary reducer rings and related transmission parts. The relationship between internal teeth and outside mounting features is important for correct alignment in the assembly.
Part types and features

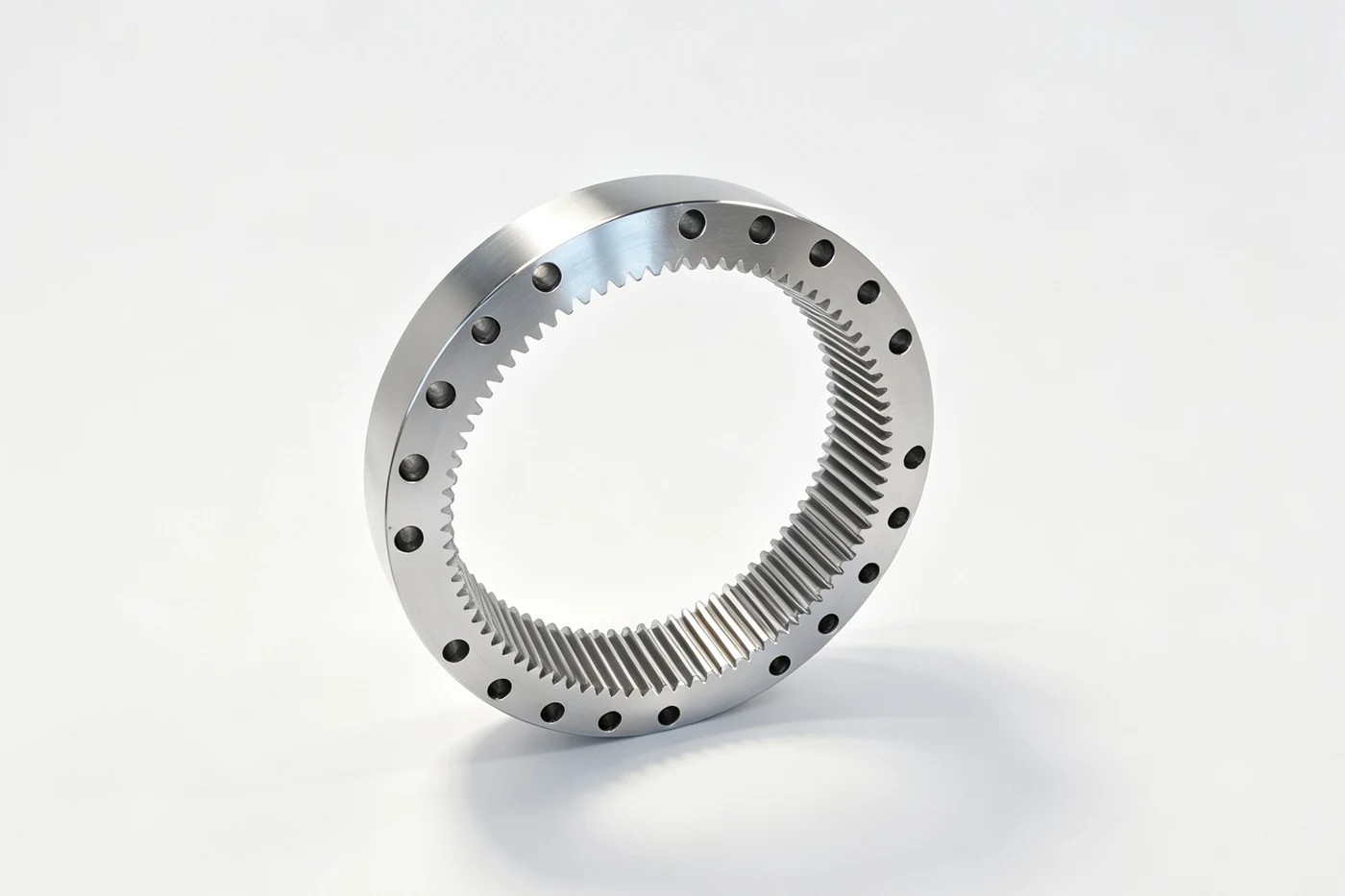

- Flanged ring gears
Internal teeth with mounting faces and a defined bolt pattern. - Thin-ring components
Compact tooth rings where clamping and distortion deserve attention. - Wheel-end rings
Ring components for enclosed reduction arrangements.
TECHNICAL DEFINITION
Specifications to include in your drawing
Include these details with your drawing so we can assess manufacturing, inspection and quotation requirements.
| Review item | What to define |
|---|---|
| Internal tooth geometry | Tooth count, module, pressure angle and spur/helical definition. |
| Mating components | Planet and sun drawings, assembly ratio and available engagement clearance. |
| Mounting features | Flange thickness, bolt circle, locating diameter and face datums. |
| Ring condition | Material, hardness, treatment and allowable distortion after processing. |
| Acceptance | Tooth inspection method, concentricity and assembly-related checks. |
Share your dimensions, material, accuracy requirements and order quantity. We confirm the manufacturing options and delivery requirements for your specific part.
MANUFACTURING & INSPECTION
Manufacturing and inspection for this part
Internal cutting requires a suitable tool-access and workholding plan. The YK8132 power skiving machine in the manufacturing base is relevant to discussing applicable internal gear work. Ring stiffness, tool clearance and heat-treatment movement are reviewed before the machining and finishing sequence is agreed.
View inspection and quality documentationCNC Turning & Component Machining
Journal fits, shoulders and integrated transmission features.
Gear Inspection & Precision Metrology
Profile, lead, pitch or other characteristics specified for the part.
Tooth-to-mount alignment
Internal teeth relative to the specified outside or flange datum.
Ring geometry
Roundness, mounting-face relationship and critical wall dimensions.
Assembly compatibility
Mating tooth data and any defined backlash or meshing checks.
APPLICATIONS
Where these components work
APPLICATION CONTEXT
Mobile equipment reducers
Travel, slewing and enclosed reduction drives.
View application requirementsAPPLICATION CONTEXT
Planetary actuators
Compact rings surrounding a sun-and-planet stage.
View application requirementsAPPLICATION CONTEXT
Agricultural transmission systems
Wheel-end and gearbox reduction components.
View application requirementsPRODUCT QUESTIONS
Before you send the drawing
Do you need the planet gear drawing?
Where tooth compatibility or assembly backlash is part of the requirement, send the mating planet data and the assembly reference.
Why do flange and outside dimensions matter?
The ring is located by those interfaces in the housing. Their relationship to the tooth system affects alignment and meshing.
Are ring gears available as standard stocked sizes?
These are custom-manufactured parts. Send your dimensions, material and quantity so we can quote the required part and delivery requirements.
