Custom Helical Gear Manufacturing
Custom helical gears and combined transmission parts for industrial and electric-vehicle drives. Manufactured to your tooth geometry, shaft interfaces and finishing requirements.
PRODUCT OVERVIEW
Helical Gears for your transmission layout
Helical gears use angled teeth, allowing engagement to develop progressively across the face. They are frequently selected for transmissions where smooth running and acoustic behavior matter. The mesh also introduces axial thrust, which must be accommodated by the shaft and bearing arrangement.
For external helical gears on parallel axes, helix hand and the normal or transverse definition of module must be clear. KERVELD manufactures custom helical components around the approved drawing, including gear blanks, integrated shafts and compound gear features.
Part types and features
- External helical gears

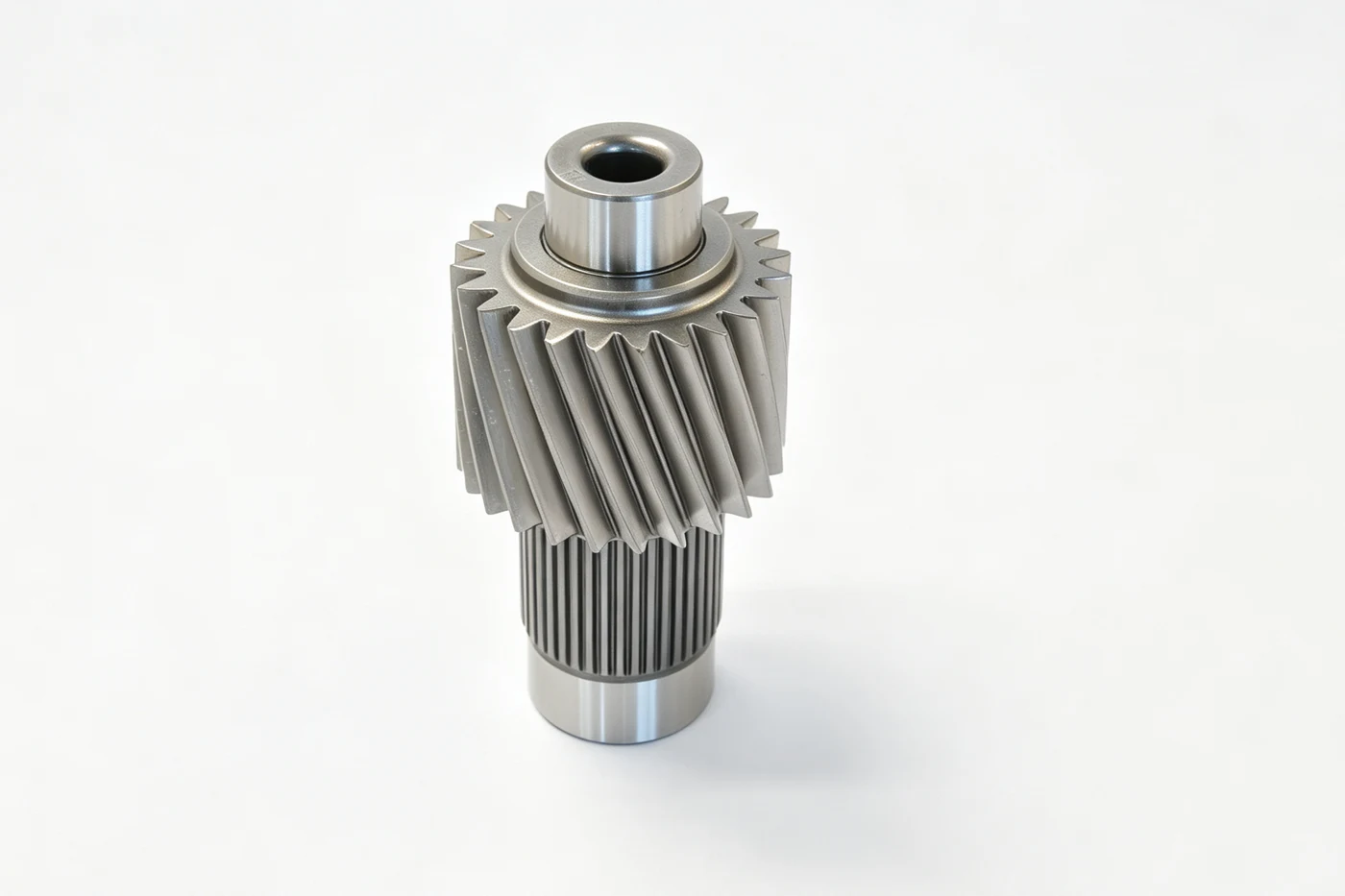

Single gear wheels for parallel-shaft power transmission. - Integrated gear shafts
A helical tooth feature and shaft interfaces in one controlled part. - Compound components
Multiple transmission features manufactured against one datum scheme.
TECHNICAL DEFINITION
Specifications to include in your drawing
Include these details with your drawing so we can assess manufacturing, inspection and quotation requirements.
| Review item | What to define |
|---|---|
| Helix geometry | Helix angle, helix hand and the normal or transverse gear system. |
| Tooth data | Module or pitch, tooth count, pressure angle and modification notes. |
| Interfaces | Bearing journals, bore or spline fit, axial location and runout limits. |
| Finishing condition | Cut or ground tooth requirement, treatment and finishing allowance. |
| NVH and inspection | Specified profile/lead evaluation and system-level noise acceptance, if applicable. |
Share your dimensions, material, accuracy requirements and order quantity. We confirm the manufacturing options and delivery requirements for your specific part.
MANUFACTURING & INSPECTION
Manufacturing and inspection for this part
CNC machining, tooth cutting and specified hard finishing produce the complete helical part. Include profile, lead and accuracy requirements so the manufacturing and inspection plan matches your drawing. Nidec and Qinchuan equipment support the gear grinding process.
View inspection and quality documentationCNC Turning & Component Machining
Journal fits, shoulders and integrated transmission features.
Gear Inspection & Precision Metrology
Profile, lead, pitch or other characteristics specified for the part.
Profile and lead
Tooth flank requirements and any specified corrections.
Datum alignment
The relationship between gear teeth, bearing journals and mounting faces.
Mesh context
Mating gear revision, center distance and the stated tooth-thickness/backlash conditions.
APPLICATIONS
Where these components work
APPLICATION CONTEXT
E-drive reduction stages
Electric motor reduction and speed-to-torque conversion.
View application requirementsAPPLICATION CONTEXT
Industrial gearboxes
Continuous-duty reduction and transmission systems.
View application requirementsAPPLICATION CONTEXT
Transmission shafts
Integrated gears and bearing interfaces.
View application requirementsPRODUCT QUESTIONS
Before you send the drawing
What extra data does a helical gear drawing need?
Specify helix angle and hand, and make clear whether module and pressure angle are normal or transverse. Include any profile and lead modifications.
Can gear inspection alone prove a noise target?
No. Component measurements support the requirement, but system noise also depends on bearings, housing, alignment, lubrication and operating conditions.
Can you quote an integrated helical shaft?
Send the complete shaft drawing, including tooth data, journals, spline features, heat treatment and datum relationships.
